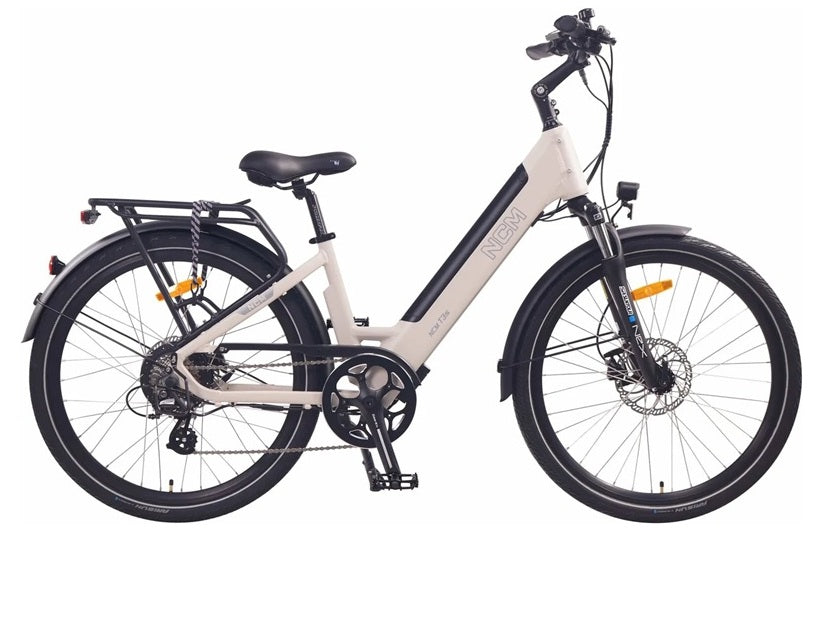

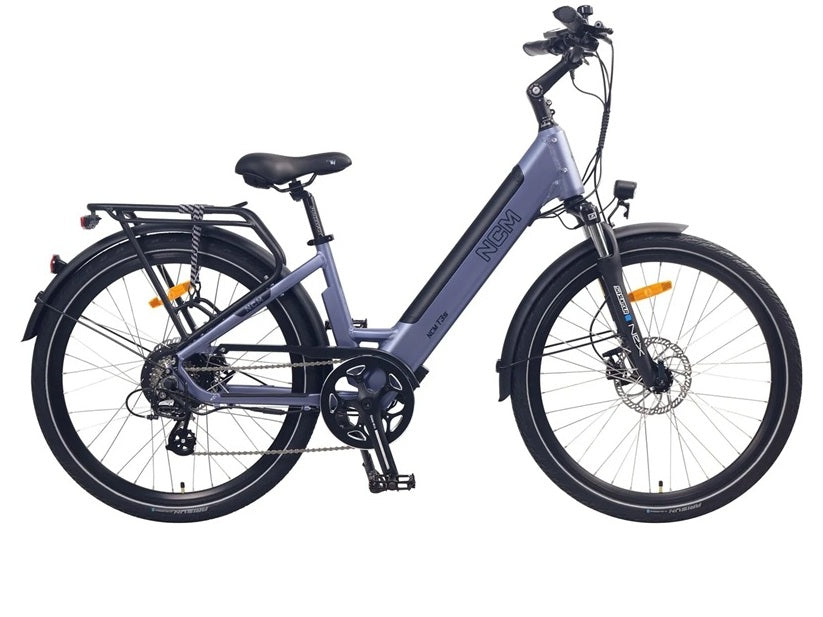

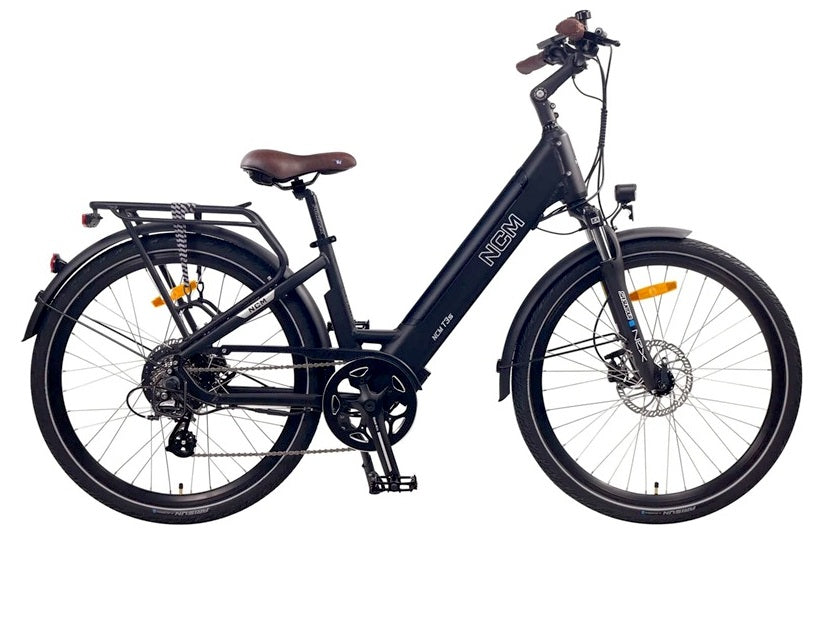

NCM T3S Step-Thru Trekking E-Bike

An exceptional entry point into the world of e-trekking bikes, the NCM T3S offers the chance to experience the smoothest city and countryside rides on an accessible step-through e-bike engineered with high-quality components.

All-important controls are easily accessible to help you make the most of up to 500W peak motor power and more than 576Wh capacity for a range of up to 120km (depending on the conditions).

COMPONENTS

• Frame: Alu. 6061, 26"x380mm
• Suspension Fork: Suntour, NEX
• Brake: Hydraulic disc brakes
• Freewheel: 7 Speed, 14-28T
• Tire: Arisun, H-5213E, 26x2.15
• Saddle: Selle Royal, FREEWAY
• Stem: ZOOM, TDS-C269-8/ISO-P
• Crank: Das-Kit, CT48A, 48T
• Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed
• Derailleur: Shimano, Altus RD-M310
• Chain: KMC, Z51
• Rack: Rear Rack with Elastic Straps

ELECTRICS

• Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
• Easy removable: charge the battery anywhere
• Hub Motor Rated: Das-Kit, X15, 48V 250W
• Controller: Das-Kit, CT5-i6, 48V 18A
• Charger: Das-Kit, 48V2A
• Display: Das-Kit, L7T
• Front Light: LED, 48V, 40Lux
• Rear Light: LED, AAA*2

WEIGHT

• Net Weight (with battery): 26.0kg
• Battery Weight: 3.5kg
• Max Load (driver+bike): 140kg
